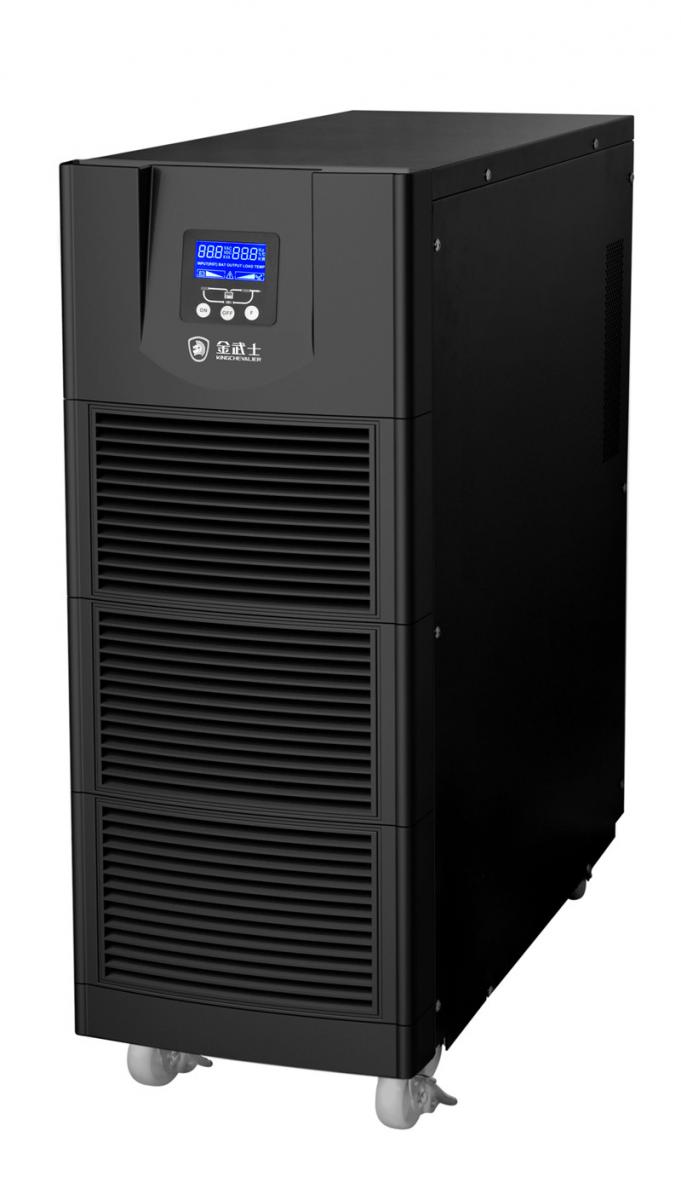

Golden Samurai GT10K

product power:8KW（千瓦）

product capacity:10KVA 【View products of the same capacity】

series:High frequency GT series 【View the same series of products】

voltage input and output:Single input single output (220V:220V)

weight:23 kg（ 公斤）

size（LWH）:260*533*501 MM（毫米）12U

Shape classification:

  • Product Overview
  • For details
  • Installation Notes
  • Product Image
  • After-sales service
  • Documentation

    • GT10K Detailed parameter list

    capacity10KVA/9KW
    modelGT10K

    GT10K 輸入?yún)?shù)

    Rectifier typeIGBT rectifier
    The rated voltage220Vac
    Input voltage range120~275 VAC
    Input frequency range40Hz~70Hz(adjustable)
    Input power factor>=0.99

    GT10K Output parameters

    Rated output10KVA / 9000 W
    Rated output voltage220Vac
    The output frequency50/60 Hz +/- 0.5Hz
    Way to workon-line
    Output waveformSine wave
    Conversion time0ms
    Overload capacity125%，50s

    GT10K Battery and running time

    The battery modelMaintenance-free sealed lead-acid battery
    Mark the machine backup timeHalf-time: ≥11 minutes
    Battery pack model12V7AHX6
    Typical battery charging timeEight hours
    The battery voltage192V

    GT10KSystem parameters and standards

    installationtower
    The machine efficiencyUp to 90%
    Electromagnetic compatibilityICE/EN/AS 62040-1；CISPR 22 A級(jí)
    Surge protectionICE/EN 62040-2，meetICE/EN 61000-4-5
    Protection typeIP20

    GT1K Communication and management

    Interface portsRS232，Optional Wedpower card, AS400 card
    The control panelLED status indicator
    The alarmPower outage alarm once 4 seconds: special low battery alarm once per second

    GT10K Physical indicators

    W260.00 mm
    D533.00 mm
    H501.00 mm
    The weight of the23.00 KG
    colorblack

    GT10K The environment
    The work environment0 - 40 °C
    Working relative humidity0 - 95%
    Operating height0-1500M
    Storage temperature-5 - 45 °C
    Storage relative humidity0 - 95%
    Store height0-1500M
    The auditory noise is 1 m above the device surface<40.00 dB

    GT10K The warranty

    The standard warrantyRepair or replacement within 3 years



    10KVA AC 220V input: AC 220V output

    Input parameters
    Input voltage220V AC
    Enter the live wire diameter10mm2
    Input zero wire diameter10mm2
    Input ground wire diameter10mm2
    Input air switch80A -1P
    Output parameters
    The output voltage220V AC
    Output wire diameter16mm2
    Output neutral wire diameter16mm2
    Output ground wire diameter16mm2
    Output MCB80A -1P
    Battery parameters
    External battery MCB100A-2P
    External battery wire diameter10mm2

    10KVA AC 380V input: AC 220V output

    Input parameters
    Input voltage380V AC
    Enter the live wire diameter10mm2
    Input zero wire diameter10mm2
    Input ground wire diameter10mm2
    Input air switch80A -3P
    Output parameters
    The output voltage220V AC
    Output wire diameter16mm2
    Output neutral wire diameter16mm2
    Output ground wire diameter16mm2
    Output MCB80A -1P
    Battery parameters
    External battery MCB100A-2P
    External battery wire diameter10mm2

    10KVA AC 380V input: AC 380V output

    Input parameters
    Input voltage380V AC
    Enter the live wire diameter10mm2
    Input zero wire diameter10mm2
    Input ground wire diameter10mm2
    Input air switch80A -3P
    Output parameters
    The output voltage380V AC
    Output wire diameter10mm2
    Output neutral wire diameter10mm2
    Output ground wire diameter10mm2
    Output MCB80A -3P
    Battery parameters
    External battery MCB100A-2P
    External battery wire diameter10mm2



    2451×4315
     GT10K
